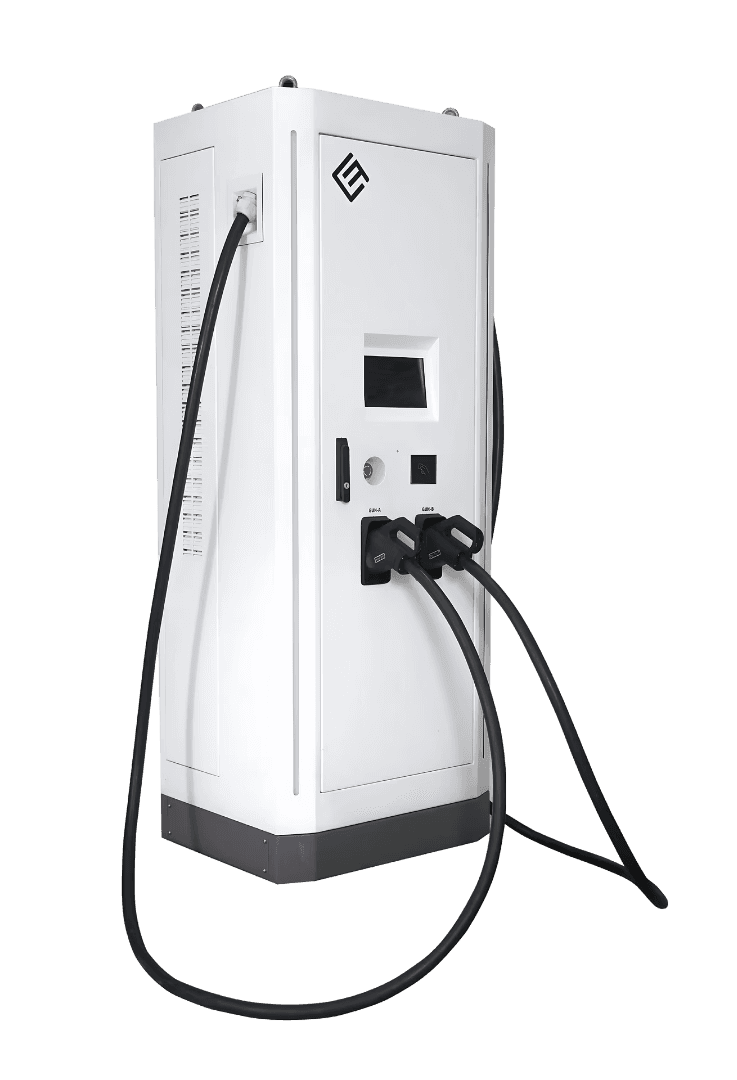

DC Fast Charging,
Engineered in India.

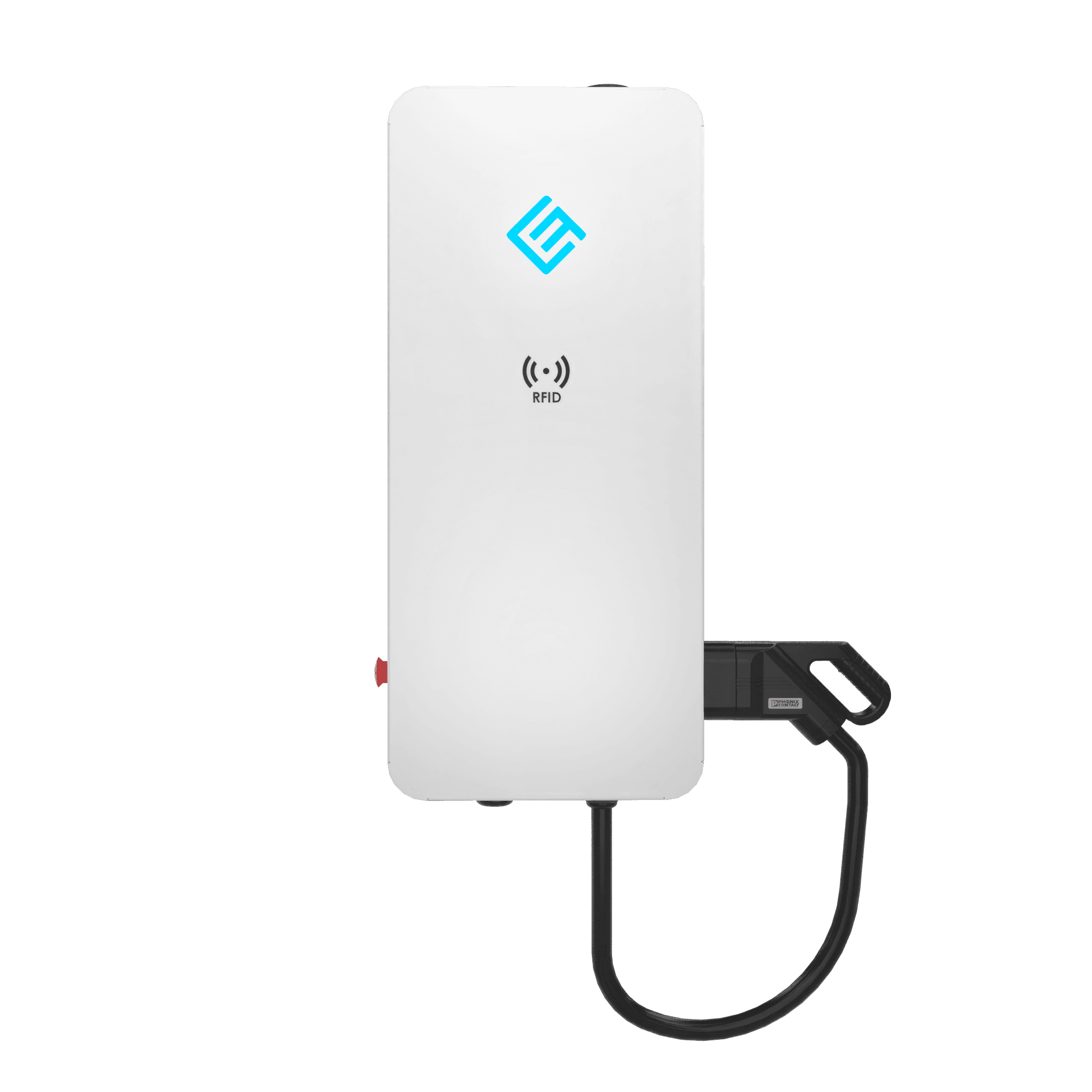

From 22 kW DC wall mounts to 400 kW flagship stations — ARAI-certified, OCPP 2.0.1, and built around in-house R&D.
- Power
- 22 kW DC – 400 kW
- Standard
- OCPP 1.6J & 2.0.1
- Efficiency
- > 96%
Engineered for fleets, highways, and cities.
DC fast charging bypasses that converter and pushes high-current direct current straight into the battery — adding hundreds of kilometres of range in minutes, not hours.

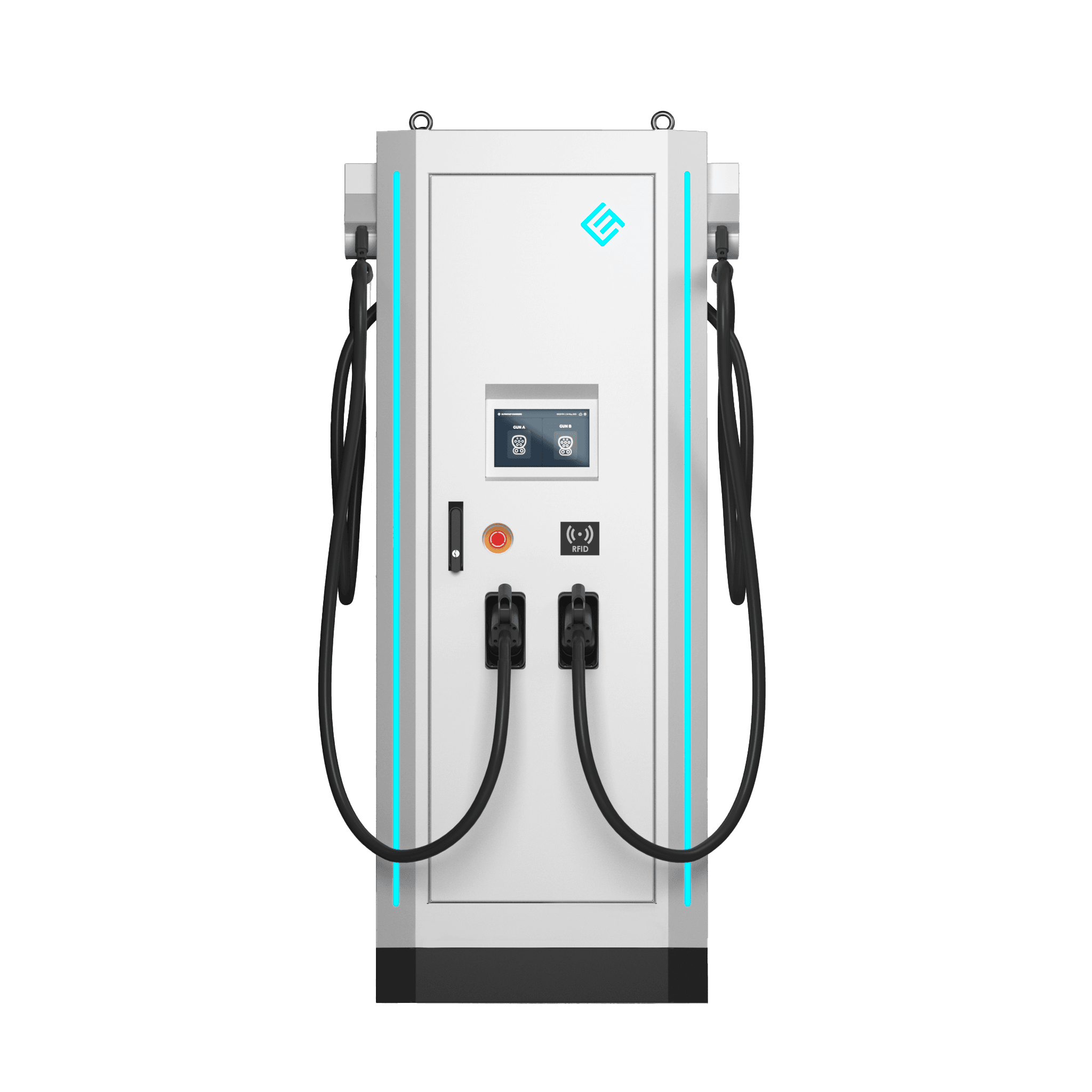

One platform, three power tiers.
From compact wall mounts to flagship 400 kW stations — built on the same firmware, communication stack, and safety platform.
What it takes to deploy a UFC station.
Six things to line up before installation day. Our team will validate the full checklist on a site survey.
Power infrastructure
3-phase 415 V supply with capacity sized for the charger.
Network connectivity
GSM / 3G / 4G modem, 10/100 Ethernet, or WiFi backhaul for OCPP 1.6J / 2.0.1 cloud management and OTA updates.
Footprint & clearance
Wall-mount: 0.7 × 0.4 m. Floor units: 2.0 × 0.75 × 0.65–0.75 m. Service clearance and falcon-wing cable swing.
Climate & protection
Operating range −35 °C to +55 °C. IP54 enclosure, anti water-logging gun holder, centrifugal thermal cooling.
Standards & compliance
EN 61851, EN 62196, DIN 70121, ISO 15118, IEC 61000-6-3, EMC Class A, FCC Part 15. ARAI certified.
Smart features (optional)

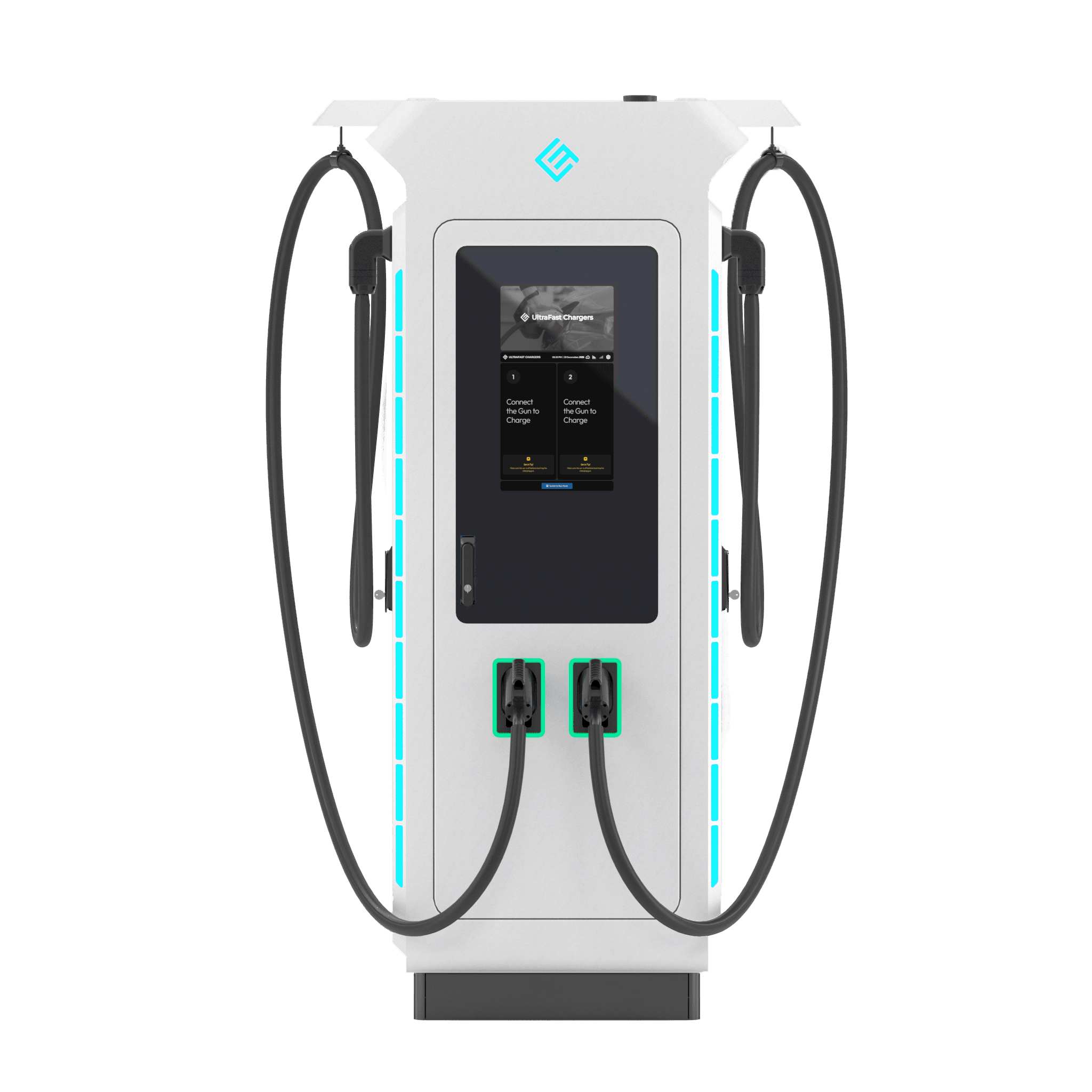

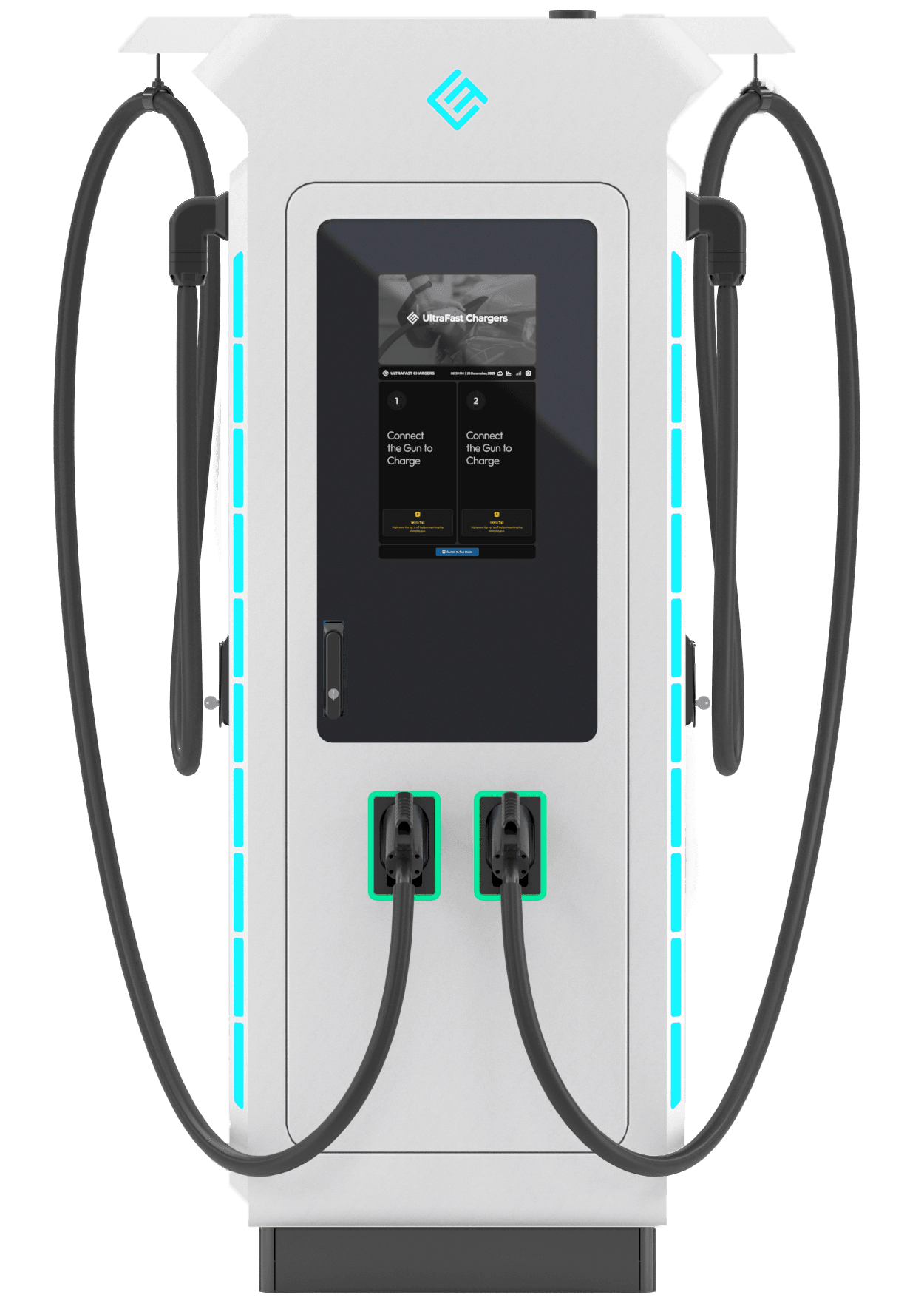

Single-screen integrated digital advertising (UFC400), RFID multi-standard (Mifare, FeliCa, NFC), Autocharge.
Our Valued Customers
Leading charge-point operators and energy companies trust UltraFast Chargers to power their networks across India.
And many more…
Built around in-house engineering — firmware, UI, cabinet, and cooling.
Let's plan your charging hub.
Tell us where, how many vehicles, and what power. We'll come back with the right product mix, single-line drawings, and a deployment timeline.
- ✓Site survey & single-line drawing
- ✓Product mix recommendation
- ✓OCPP / CSMS integration
- ✓Commissioning & training
- ✓On-going support tickets in Odoo
